KH400 Color Paperless Recorder |

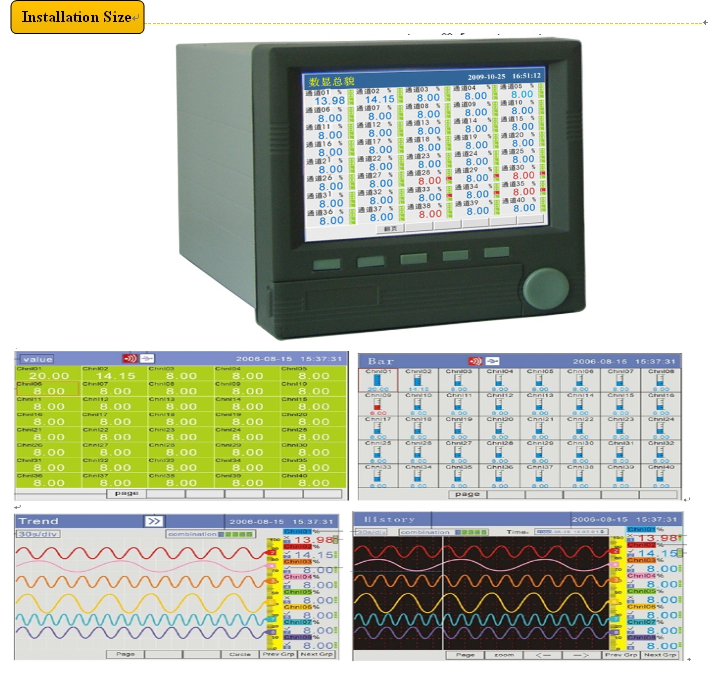

KH400 color paperless recorder (288X288X280mm, up to 40 channels) is color TFT LCD display; completely isolated universal input such as thermocouple, thermal resistance, current and voltage, adopts modular structure output functions such as alarm, auxiliary power supply for sensors output, retransmission, print and communication etc. Measuring data can be displayed in various types, such as graphic display as bar-graph, real-time trending, history trending memory, and alarming state display. also can be printed in curve and data by mini printer through RS232 port ; The recorder uses LINUX operating system with password protection. 64M memory capacity built in, can be increased if need. In addition to RS232/485 communication based on MODBUS-RTU and USB memory for download data, the recorder also can be connected with ENTHERNET at 10M rate to support the PC to configuration in long-distance and managing data; and can also monitor and control in long distance by MODEM telephone or wireless data transmitting ways.

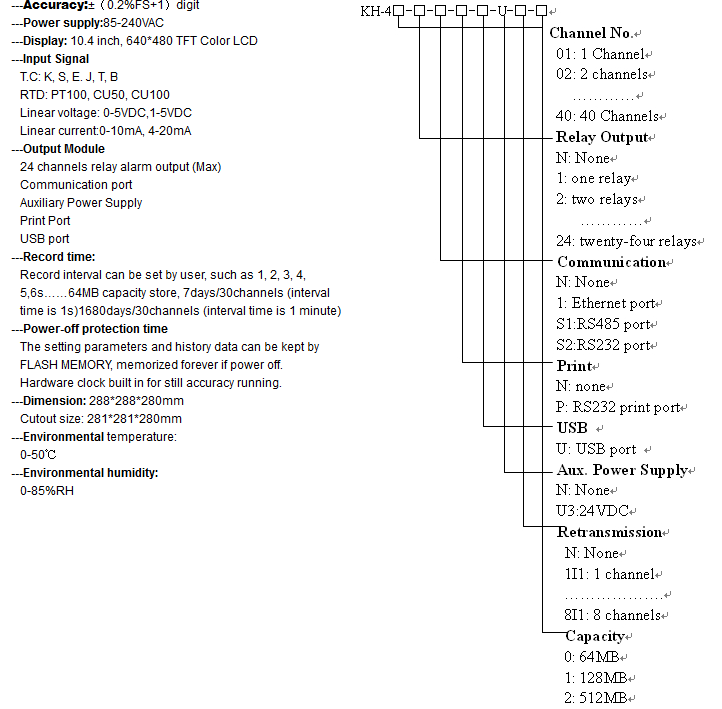

E.g. Order Code: KH440B-D-24-S1-U3-S1-N, model: KH200B-D, 160X80x105mm, 16 Channels, 8relay alarm output, USB port, RS485 communication port,24VDC aux. output, 220VAC power supply
